DATA TRANSMISSION SYSTEMS - DIGITAL

TD 600E

TDM/ETH Data Transmission System With SHDSL/SHDSL.BIS Code Line



CN383-FRONTE

TD 600E

CN383-PROSPETTIVAFRONTE-SCHEDE

TD 600E

CN383-PROSPETTIVAFRONTE

TD 600E

The TD 600E system is the latest generation of devices for digital access networks to which were added Ethernet interfaces and the ability to aggregate traffic on optical fiber. TD 600E allows to carry E1 and Ethernet connection over 2 or 4 wires.

ATTACHMENTS

iconadownload  TD600E Descriptive Monography (287 KB)

iconadownload  TD600E LMS-ETH Descriptive Monography  (1 MB)

iconadownload  TD600E LMS-ETH Software (7 MB)

iconadownload  GE037 Element Manager Descriptive Monography (730 KB)

iconadownload  TS608 Descriptive Monography (629 KB)

iconadownload  CN383 Installation Manual (Italian) (485 KB)

iconadownload  TS608.2 Installation Manual (Italian) (238 KB)

iconadownload  TS608.4 Installation Manual (Italian) (234KB)

iconadownload  TS608.8 Installation Manual (Italian) (218KB)

iconadownload  TS608.R Installation Manual (Italian)  (224 KB)

iconadownload  TS608.R4 Installation Manual (Italian)  (198 KB)

iconadownload  TS608.T8 Installation Manual (Italian) (240 KB)

The TD 600E System is an expansion of the TD 600, to which were added Ethernet interfaces and the ability to aggregate traffic on optical fiber.
The TD 600E System is designed and built in the laboratories of TELECO S.p.A. and it is the latest generation of set of devices for digital access networks and it allows to carry E1 and Ethernet connection over 2 or 4 wires, with the ability to change the line speed depending on required traffic and the length of the line section.

The SHDSL Teleco system has many advantages, among which:
– Easy integration into already existing networks.
– Increased reliability (reduced number of components).
– Small size.
– Low power consumption (using low power components).
– Low costs.

The distance reached by the system depends on line speed.

The Teleco SHDSL system can be considered the best way for data transmission in the existing network and permits to avoid the high costs of fiber optic cables or the use of additional cables.

Available interfaces for the Teleco system meet the current standards and provide the following operating modes:
– 2 Mbit/s unframed (to ITU-T G.703).
– 2 Mbit/s framed (to ITU-T G.703/G.704, ISDN-PRA).
– N x 64 Kbit/s (to ITU-T X.21, V.35, V.36).
– Ethernet 10/100Mbit/s electric.
– Ethernet 1000Mbit/s fiber.

The SHDSL Teleco system can be managed through a own software called L.M.S. (Line Management System) and from EM (Element Manager).

The system supports three main types of connection that can coexist on the same platform:
– Transport of TDM streams, classic.
– Transport of TDM streams through PWE3 circuit emulation.
– Transport of Ethernet streams.

The TD 600E System consists of the following devices:
– CN 383: N3 sub-rack with aggregation feature up to 1 GB.
– TS 608.R: LTU/NTU rack device with 8 wires and 4 ETH port with power supply unit + bus to Gbe.
– TS 608.R4: LTU/NTU rack device with 4 wires and 4 ETH port with power supply unit + bus to Gbe.
– UA 643.1: Unit Aggregator 1Gbe (with SFP module) for PWE3 streams.
– UA 643.2: Unit Aggregator 1Gbe (with SFP module) for ETH streams.
– UA 643.3: Unit Aggregator 1Gbe (with SFP module) for PWE3 and ETH streams.
– MA 177E: Rack alarm unit with 2 Ethernet 10/100 access port and 1 local port with SNMP and SSH support.
– TS 607.2E: LTU/NTU rack device 4 channel with power supply unit (4xE1/2F – 2xE1/4F – MIXED -75 ohm) with bus to Gbe.
TN 338: ETSI N3 rack.
– TS 608.8: NTU desktop device with 8 wires and 4 ETH port.
– TS 608.4: NTU desktop device with 4 wires and 4 ETH port.
– TS 608.2: NTU desktop device with 2 wires and 2 ETH port.
– TS 608.T8: LTU/NTU desktop device with 8 wires and 4 ETH port with power supply unit + rack installation kit.
– TS 608.T4: LTU/NTU desktop device with 4 wires and 4 ETH port with power supply unit + rack installation kit.
– TS 608.T2: LTU/NTU desktop device with 2 wires and 4 ETH port with power supply unit + rack installation kit.
RP 926: Desktop repeater/regenerator for 1 channel / 4 wires or 2 channel / 2 wires.
– CP 396: Standardized wired case for external SHDSL 4 systems + wall installation kit.

Compatible devices from old TD 600 System:
– TS 605.4: NTU desktop device 2/4 wires + DCE3 X/X (DB37) / G.703 (75/120 ohm) + Connector kit (S 386).
– TS 607.7: LTU/NTU Master/Slave desktop device with power supply unit (4xE1/2F – 2xE1/4F – MIXED – 75 ohm) + Connector kit (S 385).
– TS 607.T: LTU Master/Slave desktop device with power supply unit (1xE1/2F – 1xE1/4F – 75/120 ohm) + Connector kit (S 384).

Warning!:
Old TS 607.2 device (for old TD 600 System) CAN NOT BE inserted into the new CN 383 sub-rack.
New TS 607.2E device, UA 643.x devices and TS 608.R/R4 devices CAN NOT BE inserted into the old CN 380 sub-rack (old TD 600 System).

TD 600E System: Devices and Structures

MA172-FRONTE

MA 177E

MA177-PROSPETTIVAFRONTE

MA 177E

MA177-ALTO

MA 177E

MA177-RETRO

MA 177E

MA177-PROSPETTIVARETRO

MA 177E

TS608R-FRONTE

TS 608.R

TS608R-PROSPETTIVAFRONTE

TS 608.R

TS608R-ALTO

TS 608.R

TS608R-LATO2

TS 608.R

TS608R-LATO1

TS 608.R

TS608R-RETRO

TS 608.R

TS608R-PROSPETTIVARETRO

TS 608.R

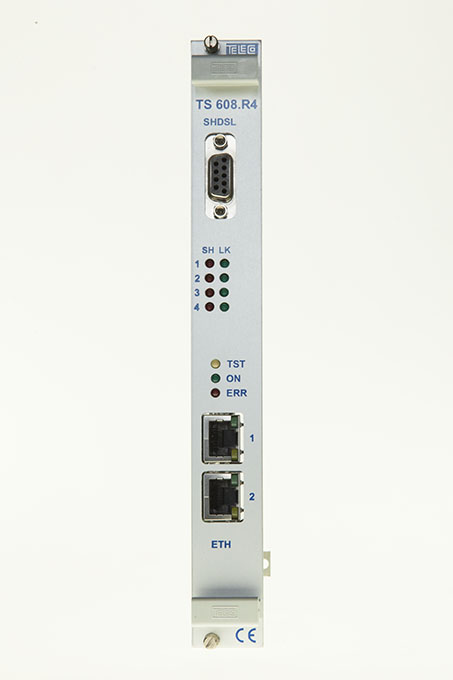

TS608.R4-FRONTE-TELECO

TS 608.R4

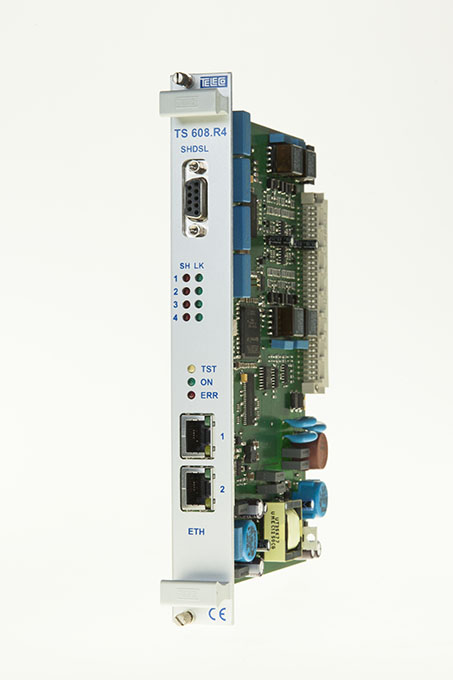

TS608.R4-PROSPETTIVAFRONTE-TELECO

TS 608.R4

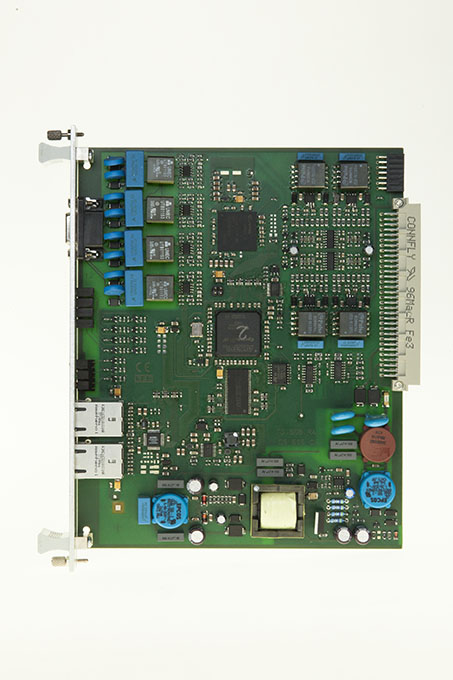

TS608.R4-ALTO-TELECO

TS 608.R4

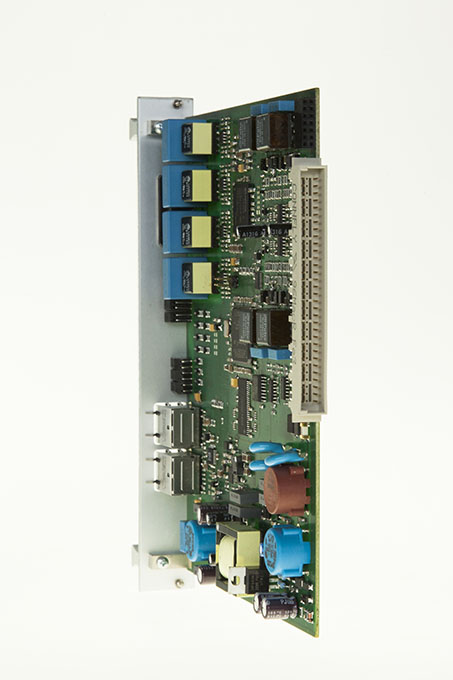

TS608.R4-PROSPETTIVARETRO-TELECO

TS 608.R4

UA643.1.2.3-FRONTE-TELECO

UA 643

UA643.1.2.3-PROSPETTIVAFRONTE-TELECO

UA 643

UA643.1.2.3-ALTO-TELECO

UA 643

UA643.1.2.3-PROSPETTIVARETRO-TELECO

UA 643

TS607.2E-FRONTE-TELECO

TS 607.2E

TS607.2E-PROSPETTIVAFRONTE-TELECO

TS 607.2E

TS607.2E-ALTO-TELECO

TS 607.2E

TS607.2E-RETRO-TELECO

TS 607.2E

TS607.2E-PROSPETTIVARETRO-TELECO

TS 607.2E

TN 338-telaio-fronte_teleco

TN 338

TN 338-telaio-prospettiva1_teleco

TN 338

TN 338-telaio-prospettiva2_teleco

TN 338

TN 338-telaio-dettaglio3_teleco

TN 338

TS608.2-FRONTE

TS 608.2

TS608.2-PROSPETTIVA

TS 608.2

TS608.2-RETRO

TS 608.2

TS608.4-FRONTE

TS 608.4

TS608.4-PROSPETTIVA

TS 608.4

TS608.4-RETRO

TS 608.4

TS608.8-FRONTE

TS 608.8

TS608.8-PROSPETTIVAFRONTE

TS 608.8

TS608.8-RETRO

TS 608.8

TS608T8-FRONTE-A

TS 608.T8

TS608T8-FRONTE

TS 608.T8

TS608T8-PROSPETTIVAFRONTE

TS 608.T8

TS608T8-RETRO-A

TS 608.T8

TS608T8-RETRO

TS 608.T8

RP926-FRONTE

RP 926

RP926-PROSPETTIVA

RP 926

CN383-PROSPETTIVAFRONTE

CN 383

CN383-FRONTE

CN 383

TD 600E System: Compatible Devices with old TD 600 System

TS605.4-FRONTE

TS 605.4

TS605.4-PROSPETTIVAFRONTE

TS 605.4

TS605.4-RETRO

TS 605.4

TS605.4-PROSPETTIVARETRO

TS 605.4

Slide background

TS 607.7

Slide background

TS 607.7

Slide background

TS 607.7

Slide background

TS 607.7

TS607.T-FRONTE

TS 607.T

TS607.T-PROSPETTIVAFRONTE

TS 607.T

TS607.T-RETRO

TS 607.T

TS607.T-PROSPETTIVARETRO

TS 607.T
